EDRH5D28:
Inductance Range：2.5μH~680μH
Temperature Range：－40℃～＋105℃

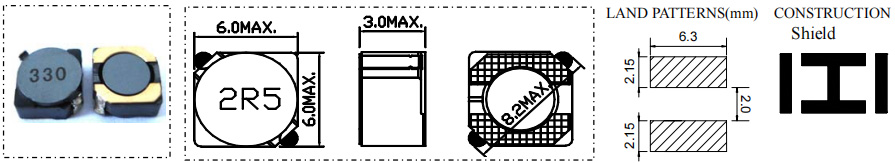

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 2000pcs
★Small products, Quadrate6.0mm Max, Height 2.8mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(Ω) Max.
|
Rated Current(A)
|
|
EDRH5D28-2R5M,N
|
10KHz/0.1V
|
2.5
|
±20,±30
|
18m
|
2.60
|
|
EDRH5D28-3R3M,N
|
10KHz/0.1V
|
3.3
|
±20,±30
|
30m
|
2.10
|
|
EDRH5D28-4R7M,N
|
10KHz/0.1V
|
4.7
|
±20,±30
|
35m
|
2.00
|
|
EDRH5D28-5R6M,N
|
10KHz/0.1V
|
5.6
|
±20,±30
|
40m
|
1.90
|
|
EDRH5D28-8R2M,N
|
10KHz/0.1V
|
8.2
|
±20,±30
|
53m
|
1.60
|
|
EDRH5D28-100M,N
|
10KHz/0.1V
|
10
|
±20,±30
|
65m
|
1.30
|
|
EDRH5D28-120M,N
|
10KHz/0.1V
|
12
|
±20,±30
|
76m
|
1.20
|
|
EDRH5D28-150M,N
|
10KHz/0.1V
|
15
|
±20,±30
|
0.103
|
1.10
|
|
EDRH5D28-180M,N
|
10KHz/0.1V
|
18
|
±20,±30
|
0.110
|
1.00
|
|
EDRH5D28-220M,N
|
10KHz/0.1V
|
22
|
±20,±30
|
0.122
|
0.90
|
|
EDRH5D28-270M,N
|
10KHz/0.1V
|
27
|
±20,±30
|
0.175
|
0.85
|
|
EDRH5D28-330M,N
|
10KHz/0.1V
|
33
|
±20,±30
|
0.189
|
0.75
|
|
EDRH5D28-390M,N
|
10KHz/0.1V
|
39
|
±20,±30
|
0.212
|
0.70
|
|
EDRH5D28-470M,N
|
10KHz/0.1V
|
47
|
±20,±30
|
0.250
|
0.62
|
|
EDRH5D28-560M,N
|
10KHz/0.1V
|
56
|
±20,±30
|
0.305
|
0.58
|
|
EDRH5D28-680M,N
|
10KHz/0.1V
|
68
|
±20,±30
|
0.355
|
0.52
|
|
EDRH5D28-820M,N
|
10KHz/0.1V
|
82
|
±20,±30
|
0.463
|
0.46
|
|
EDRH5D28-101M,N
|
10KHz/0.1V
|
100
|
±20,±30
|
0.520
|
0.42
|
|
EDRH5D28-121M,N
|
10KHz/0.1V
|
120
|
±20,±30
|
0.560
|
0.40
|
|
EDRH5D28-151M,N
|
10KHz/0.1V
|
150
|
±20,±30
|
0.680
|
0.35
|
|
EDRH5D28-181M,N
|
10KHz/0.1V
|
180
|
±20,±30
|
0.930
|
0.32
|
|
EDRH5D28-221M,N
|
10KHz/0.1V
|
220
|
±20,±30
|
1.150
|
0.30
|
|
EDRH5D28-271M,N
|
10KHz/0.1V
|
270
|
±20,±30
|
1.560
|
0.27
|
|
EDRH5D28-331M,N
|
10KHz/0.1V
|
330
|
±20,±30
|
1.980
|
0.25
|
|
EDRH5D28-391M,N
|
10KHz/0.1V
|
390
|
±20,±30
|
2.500
|
0.22
|
|
EDRH5D28-471M,N
|
10KHz/0.1V
|
470
|
±20,±30
|
2.700
|
0.20
|
|
EDRH5D28-561M,N
|
10KHz/0.1V
|
560
|
±20,±30
|
3.120
|
0.18
|
|
EDRH5D28-681M,N
|
10KHz/0.1V
|
680
|
±20,±30
|
4.150
|
0.16
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 35% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
