EDRB6030:
Inductance Range：10μH~330μH
Temperature Range：－40℃～＋105℃

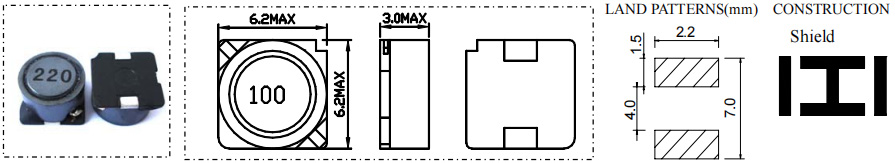

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 2000pcs
★High current & low DCR, Quadrate6.2mm Max, Heigh2.6mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(Ω) Max.
|
Rated Current(A)
|
|
EDRB6030-100M
|
1KHz/0.3V
|
10
|
±20
|
0.15
|
1.10
|
|
EDRB6030-120M
|
1KHz/0.3V
|
12
|
±20
|
0.20
|
1.00
|
|
EDRB6030-150M
|
1KHz/0.3V
|
15
|
±20
|
0.23
|
0.90
|
|
EDRB6030-180M
|
1KHz/0.3V
|
18
|
±20
|
0.27
|
0.80
|
|
EDRB6030-220M
|
1KHz/0.3V
|
22
|
±20
|
0.34
|
0.74
|
|
EDRB6030-270M
|
1KHz/0.3V
|
27
|
±20
|
0.38
|
0.66
|
|
EDRB6030-330M
|
1KHz/0.3V
|
33
|
±20
|
0.45
|
0.59
|
|
EDRB6030-390M
|
1KHz/0.3V
|
39
|
±20
|
0.49
|
0.54
|
|
EDRB6030-470M
|
1KHz/0.3V
|
47
|
±20
|
0.69
|
0.50
|
|
EDRB6030-560M
|
1KHz/0.3V
|
56
|
±20
|
0.78
|
0.46
|
|
EDRB6030-680M
|
1KHz/0.3V
|
68
|
±20
|
1.07
|
0.42
|
|
EDRB6030-820M
|
1KHz/0.3V
|
82
|
±20
|
1.21
|
0.38
|
|
EDRB6030-101M
|
1KHz/0.3V
|
100
|
±20
|
1.39
|
0.34
|
|
EDRB6030-121M
|
1KHz/0.3V
|
120
|
±20
|
1.90
|
0.31
|
|
EDRB6030-151M
|
1KHz/0.3V
|
150
|
±20
|
2.18
|
0.28
|
|
EDRB6030-181M
|
1KHz/0.3V
|
180
|
±20
|
2.77
|
0.26
|
|
EDRB6030-221M
|
1KHz/0.3V
|
220
|
±20
|
3.12
|
0.23
|
|
EDRB6030-271M
|
1KHz/0.3V
|
270
|
±20
|
4.38
|
0.22
|
|
EDRB6030-331M
|
1KHz/0.3V
|
330
|
±20
|
4.94
|
0.19
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
