EDRB1275:
Inductance Range：1.2μH~220μH
Temperature Range：－40℃～＋105℃

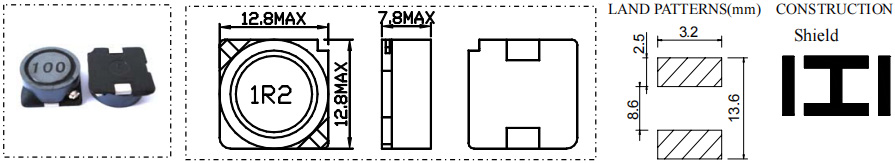

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 500pcs
★High current & low DCR, Quadrate12.8mm Max, Heigh7.5mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
| Part Number |
Test Condition |
Inductance (μH) |
Tolerance （%） |
D.C.R(mΩ) Max. |
Rated Current(A) |
| EDRB1275-1R2N |
100KHz/0.3V |
1.2 |
±30 |
8.28 |
13.00 |
| EDRB1275-2R7N |
100KHz/0.3V |
2.7 |
±30 |
11.28 |
10.00 |
| EDRB1275-3R3N |
100KHz/0.3V |
3.3 |
±30 |
12.00 |
9.50 |
| EDRB1275-3R9N |
100KHz/0.3V |
3.9 |
±30 |
12.48 |
9.00 |
| EDRB1275-4R7N |
100KHz/0.3V |
4.7 |
±30 |
13.50 |
8.50 |
| EDRB1275-5R6N |
100KHz/0.3V |
5.6 |
±30 |
13.92 |
7.80 |
| EDRB1275-6R8N |
100KHz/0.3V |
6.8 |
±30 |
15.72 |
7.20 |
| EDRB1275-100M |
1KHz/0.3V |
10 |
±20 |
18.72 |
5.50 |
| EDRB1275-150M |
1KHz/0.3V |
15 |
±20 |
22.08 |
4.70 |
| EDRB1275-220M |
1KHz/0.3V |
22 |
±20 |
31.56 |
4.00 |
| EDRB1275-330M |
1KHz/0.3V |
33 |
±20 |
47.40 |
3.20 |
| EDRB1275-470M |
1KHz/0.3V |
47 |
±20 |
63.36 |
2.70 |
| EDRB1275-680M |
1KHz/0.3V |
68 |
±20 |
93.36 |
2.00 |
| EDRB1275-101M |
1KHz/0.3V |
100 |
±20 |
150.00 |
1.90 |
| EDRB1275-151M |
1KHz/0.3V |
150 |
±20 |
210.00 |
1.50 |
| EDRB1275-221M |
1KHz/0.3V |
220 |
±20 |
309.60 |
1.30 |
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
