EDR105:
Inductance Range：10μH~470μH
Temperature Range：－40℃～＋105℃

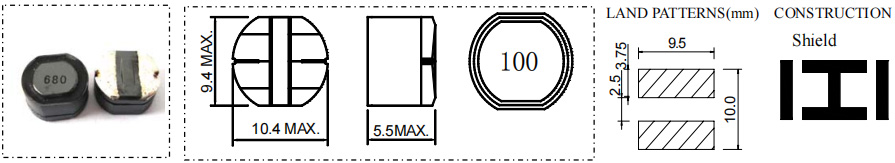

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 500pcs
★High current & low DCR, Round 10.0mm, Height 5.2mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
| Part Number |
Test Condition |
Inductance (μH) |
Tolerance （%） |
D.C.R(Ω) Max. |
Rated Current(A) |
| EDR105-100M |
1KHz/0.3V |
10 |
±20 |
60m |
2.06 |
| EDR105-120M |
1KHz/0.3V |
12 |
±20 |
70m |
1.94 |
| EDR105-150M |
1KHz/0.3V |
15 |
±20 |
70m |
1.72 |
| EDR105-180M |
1KHz/0.3V |
18 |
±20 |
80m |
1.58 |
| EDR105-220M |
1KHz/0.3V |
22 |
±20 |
80m |
1.42 |
| EDR105-270M |
1KHz/0.3V |
27 |
±20 |
0.10 |
1.32 |
| EDR105-330L,M |
1KHz/0.3V |
33 |
±15,±20 |
0.11 |
1.16 |
| EDR105-390L,M |
1KHz/0.3V |
39 |
±15,±20 |
0.12 |
1.10 |
| EDR105-470L,M |
1KHz/0.3V |
47 |
±15,±20 |
0.14 |
1.00 |
| EDR105-560L,M |
1KHz/0.3V |
56 |
±15,±20 |
0.19 |
0.93 |
| EDR105-680L,M |
1KHz/0.3V |
68 |
±15,±20 |
0.21 |
0.85 |
| EDR105-820L,M |
1KHz/0.3V |
82 |
±15,±20 |
0.28 |
0.79 |
| EDR105-101K,M |
1KHz/0.3V |
100 |
±10,±20 |
0.34 |
0.72 |
| EDR105-121K,M |
1KHz/0.3V |
120 |
±10,±20 |
0.37 |
0.63 |
| EDR105-151K,M |
1KHz/0.3V |
150 |
±10,±20 |
0.51 |
0.55 |
| EDR105-181K,M |
1KHz/0.3V |
180 |
±10,±20 |
0.57 |
0.50 |
| EDR105-221K,M |
1KHz/0.3V |
220 |
±10,±20 |
0.78 |
0.47 |
| EDR105-271K,M |
1KHz/0.3V |
270 |
±10,±20 |
0.87 |
0.41 |
| EDR105-331K,M |
1KHz/0.3V |
330 |
±10,±20 |
1.20 |
0.37 |
| EDR105-391K,M |
1KHz/0.3V |
390 |
±10,±20 |
1.34 |
0.35 |
| EDR105-471K,M |
1KHz/0.3V |
470 |
±10,±20 |
1.50 |
0.33 |
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
