EDRH SMD power inductor

FEATURES：
★High current & low DCR。
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement

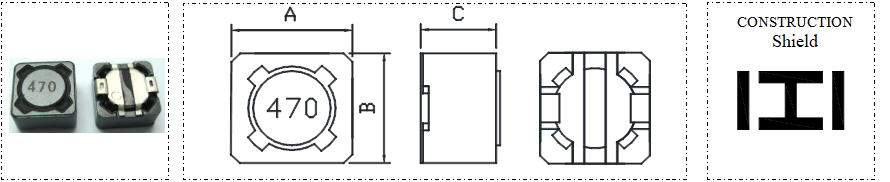

Specification size：(Unit: mm)

TYPE	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)	PDF
EDRH73	7.8MAX	7.8MAX	3.5MAX	/	/	view
EDRH74	7.8MAX	7.8MAX	4.5MAX	/	/	view
EDRH124	7.8MAX	12.5MAX	4.5MAX	/	/	view
EDRH125	12.5MAX	12.5MAX	6.0MAX	/	/	view
EDRH127	12.5MAX	12.5MAX	8.0MAX	/	/	view
EDRH129	12.5MAX	12.5MAX	10.0MAX	/	/	view
