EDRH-D SMD power inductor

FEATURES：
★High current & low DCR。
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement

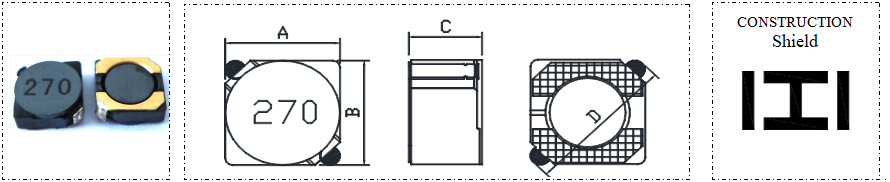

Specification size：(Unit: mm)

TYPE	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)	PDF
EDRH4D18	5.0MAX	5.0MAX	2.0MAX	13.5MAX	/	view
EDRH4D22	10.5MAX	10.7MAX	5.0MAX	13.5MAX	/	view
EDRH4D22HP	10.5MAX	10.7MAX	4.0MAX	13.5MAX	/	view
EDRH4D28	10.5MAX	10.7MAX	5.0MAX	13.5MAX	/	view
EDRH5D18	10.5MAX	10.7MAX	4.0MAX	13.5MAX	/	view
EDRH5D28	10.5MAX	10.7MAX	5.0MAX	13.5MAX	/	view
EDRH6D28	10.5MAX	10.7MAX	4.0MAX	13.5MAX	/	view
EDRH6D38	10.5MAX	10.7MAX	5.0MAX	13.5MAX	/	view
