EDC SMD power inductor

FEATURES：
★High current & low DCR。
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement

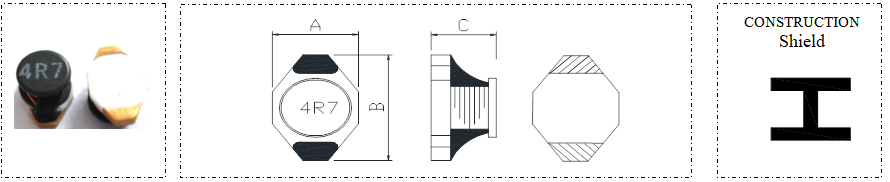

Specification size1：(Unit: mm)

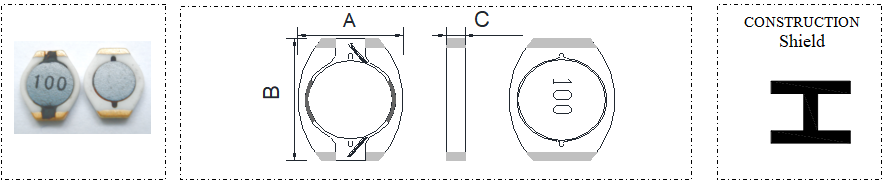

Specification size2：(Unit: mm)

TYPE	A(mm)	B(mm)	C(mm)	规格尺寸	PDF
EDC4530B	4.45MAX	6.60MAX	2.92MAX	1	view
EDC5510	5.50MAX	6.60MAX	1.0±0.1	2	view
